Wall SheetWall Sheets are lightweight sheets with a width of up to 5 m that require no sewing or eyelets to join them together.
Wall Sheet Applications
- Tradeshows
- Walls surfaces, lamp shades, ceiling decorations, graphics, and other fixtures
- Facilities
- Graphic towers, new product promotion, signage, etc.
- Stage/theater
- Tapestries, video screens, black/white-lined sheets
Wall Sheet Features
Can be combined with existing system materials.
Large-format output at sizes of up to 5,000 mm saves time and lowers costs.
Can be installed with a single screwdriver. No sewing or corner modification required.
Wall Sheet Series Product Line
Wall Sheet products are available in 10 variants. The base material is 100% polyester. All variants have been certified as flame-resistant.
| Product | Specifications | Standard size | Weight |
|---|---|---|---|
| WALL SHEET-T | Soft cloth, white | 5,100 mm (W) x 100 m (L) roll |
135g/㎡ |
| Permeable type | 3,200 mm (W) x 100 m (L) roll |
||
| WALL SHEET-S | Light-blocking cloth, white | 5,100 mm (W) x 50 m (L) roll |
285g/㎡ |
| 3,100 mm (W) x 50 m (L) roll |
|||
| WALL SHEET-WB | Light-blocking cloth | 5,100 mm (W) x 50 m (L) roll |
220g/㎡ |
| White/black (backing) | 3,200 mm (W) x 50 m (L) roll |
||
| WALL SHEET-E | Light-blocking cloth | 3,100 mm (W) x 50 m (L) roll |
320g/㎡ |
| White/double-sided type | |||
| WALL SHEET-BB | Light-blocking cloth | 3,050 mm (W) x 100 m (L) roll |
202g/㎡ |
| Black/black (backing) | |||
| WALL SHEET-TCS | Plain weave mesh cloth | 5,050 mm (W) x 50 m (L) roll |
50g/㎡ |
| White Permeable type |
3,100 mm (W) x 50 m (L) roll |
||
| WALL SHEET-F | Mesh fabric | 5,050 mm (W) x 100 m (L) roll |
90g/㎡ |
| White Permeable type |
3,200 mm (W) x 100 m (L) roll |
||
| WALL SHEET-M | Mesh fabric | 5,050 mm (W) x 100 m (L) roll |
95g/㎡ |
| White Permeable type |
3,200 mm (W) x 100 m (L) roll |
||
| WALL SHEET-D | Soft cloth | 5,050 mm (W) x 50 m (L) roll |
245g/㎡ |
| White | 3,100 mm (W) x 50 m (L) roll |
||
| WALL SHEET-OS | Outdoor/indoor use | 3,100 mm (W) x 50 m (L) roll |
300g/㎡ |
| Light-blocking non-curl double-sided printed cloth |
The base material for all variants is 100% polyester. All variants have obtained a flame-resistant product number.
Wall Sheet Tensioning System
Can be installed with a single screwdriver. No sewing or corner modification required. Tensioning system can be combined with existing system materials.

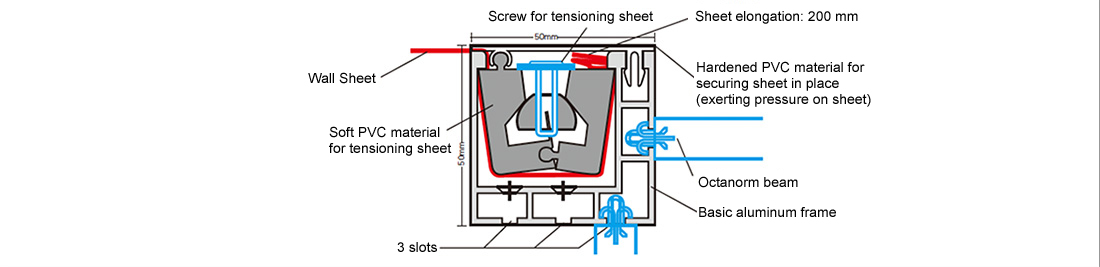

Cross-section view of tensioning system
Procedure for preparing tensioning system
asic aluminum frame
Soft PVC material for tensioning
With sheet and tensioning material installed
After tensioning work and installation of pressure-exerting hardened PVC material
Procedure for installing tensioning system
-
The sheet is pulled taut and secured in place with the tensioning material.
-
The installation process can be completed by a single worker.
-
Once tensioning work is complete, excess sheet length is tucked into extra space.
Finally, the hardened PCV cover is attached to complete the installation.
asic aluminum frameSoft PVC material for tensioningWith sheet and tensioning material installedAfter tensioning work and installation of pressure-exerting hardened PVC material-
The sheet is pulled taut and secured in place with the tensioning material.
-
The installation process can be completed by a single worker.
-
Once tensioning work is complete, excess sheet length is tucked into extra space. Finally, the hardened PCV cover is attached to complete the installation.
